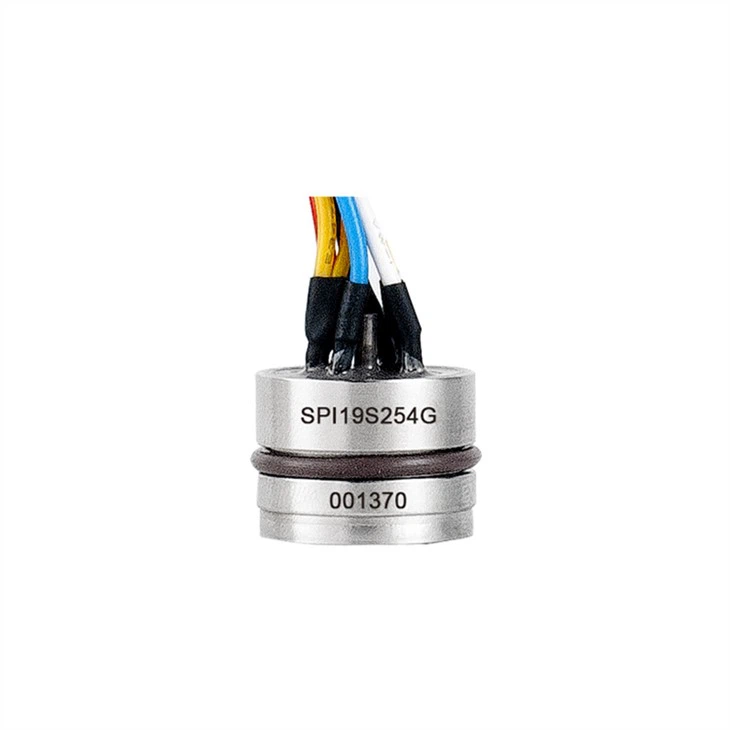

Shanghai LEEG Instruments Co., Ltd. is one of the leading manufacturers and suppliers of spi19s piezoresistive pressure sensor in China. Please feel free to buy high quality spi19s piezoresistive pressure sensor made in China here from our factory. Good service and reasonable price are available.
Piezoresistive Pressure Sensor Advantage
• High stability piezoresistive sensor die.
• Voltage excitation.
• Isolated structure, suitable various fliud.
• All in 316L stainless steel.
• Hastelloy C, Tantalum diaphragm material optional.
Piezoresistive Pressure Sensor Features
| Measuring range | 0~10 kPa...60MPa |
| Power supply | 0.8-2.0mA |
| Electrical connection | φ0.5mm kovar pin or 100mm silicone rubber soft wire |
| Bridge resistance | 3.2k±0.5k Ω |
| Respond time(10%-90% ) | < 1ms |
| Insulation resistance | 500MΩ/500VDC |
SPI19S Industry Application
• Industrial process control
• Gas, liquid pressure measure
• Aviation and navigation inspection
• Refrigeration equipment and air conditioner
Piezoresistive Pressure Sensor Download
