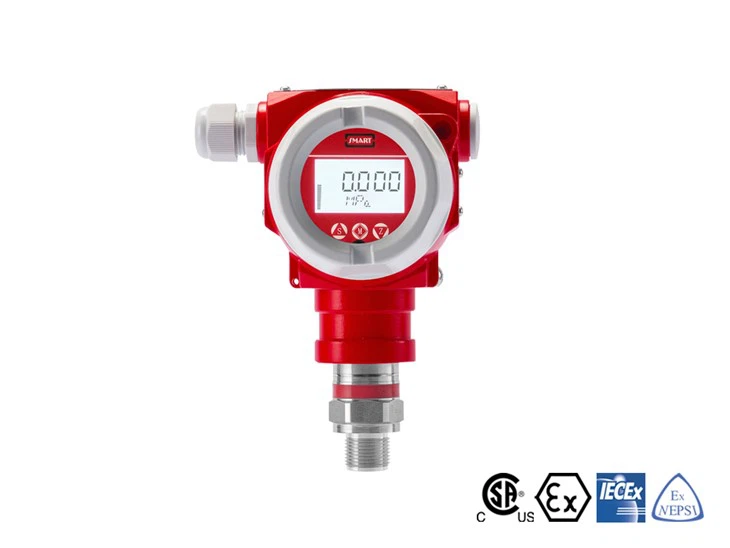

DMP305X-TST-S Gauge Pressure Transmitter

DMP305X-TST gauge pressure transmitter with monosilicon sensor is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases. DMP305X-TST intelligent pressure transmitter with reliable ex-proof construction and electronics, suitable in EX areas.

Send Inquiry

Advantage

• Dual diaphragm overload structure can easily cope with high overload tests.

• 355° rotation display module, friendly button parameters operation function.
• Accurate filling fluid technology eliminates effects of temperature and static pressure.
• High strength metal electrical protection housing meets the most rigorous environmental application.
• Strong transient voltage resistance to protect terminal module.
• External three buttons menu function enables site operation and does not affect the degree of electrical protection, in a safer and more convenient manner.
• Beautiful appearance, fully show the fashion sense of science and technology.
• Perfect match between internationally leading technology and Chinese smart manufacture.

Features

• Measuring range: 2kPa-40MPa

• Output signal: 4-20mA, 4-20mA+HART, Modbus-RTU/RS485, customer
• Reference accuracy: ±0.1% URL, optional ±0.075% URL
• Stability: ±0.2% URL/ 5 years
• Diaphragm: SUS316L, Hastelloy C
• Media temperature: -40-120℃
• Protection class: IP67
• Process connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M), etc
• Approvals: CSA, ATEX, IECEx, NEPSI, RoHS, CE

Industry application

• Process control system

• Petroleum industry
• Chemical industry
• Electric power

Download

• Data sheet

• Operation manual
• Manual of LCD keys
• ATEX certificate

• IECEx certificate

• CSA certificate

• Flame proof certificate - NEPSI

• Intrinsic safety certificate - NEPSI
• CE certificate
• RoHS certificate
