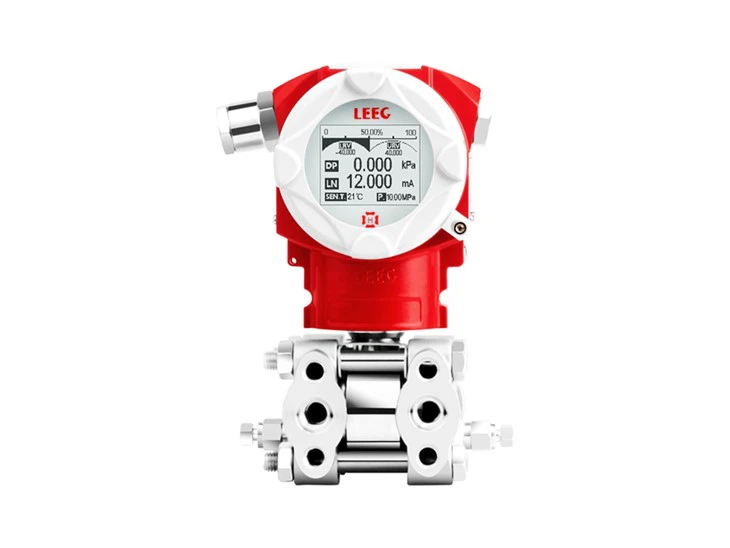

2035 Multivariable Transmitter

Name: 2035 Multivariable Transmitter
Brand: LEEG
SKU: 172107470

The second-generation LEEG2035 multi-variable transmitter is with a more advanced technical solution. Monosilicon sensor, standard configuration with Hastelloy C diaphragm material, wide media compatibility, and meets strict explosion-proof standards.
The test report of the product has been recognized by CANS China and ILAC. Perfect self-diagnosis function and good human-machine interface, red backlight fault prompt function, it’s easy to find problems on site in time.
LEEG 2035 is a cost-effective device which obtains measurement combinations of differential pressure, absolute pressure and temperature. It is widely used in petrochemical, natural gas, environmental protection engineering, pharmaceutical engineering, food engineering, water conservancy engineering, ocean engineering, engineering machinery, fluid equipment and other occasions.

Send Inquiry

Description

Advantage

• Compound monosilicon sensor with advanced technology.

• Display differential pressure, pressure and temperature value at the same time.
• Standard hastelloy C diaphragm for wide medium measurement.
• Perfect self-diagnosis and friendly operation interface.
• Comply with strict explosion-proof standards for various applications.
• Red backlight failure prompt function to find problems in time.
• CNAS China and ILAC International approved test reports.

Features

• Measuring range: 200Pa-10MPa

• Output signal: 4-20mA, 4~20mA/HART, RS485 Modbus
• Reference accuracy: ±0.075% URL, optional ±0.05% URL
• Media temperature: -40-120℃
• Measuring medium: Liquid, gas, or steam
• Diaphragm material: Hastelloy C
• Process connection: M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F)
• Protection class: IP67

Industry application

• Process control system

• Petroleum industry
• Chemical industry

Download

• Manual of LCD keys

• To be updated...
